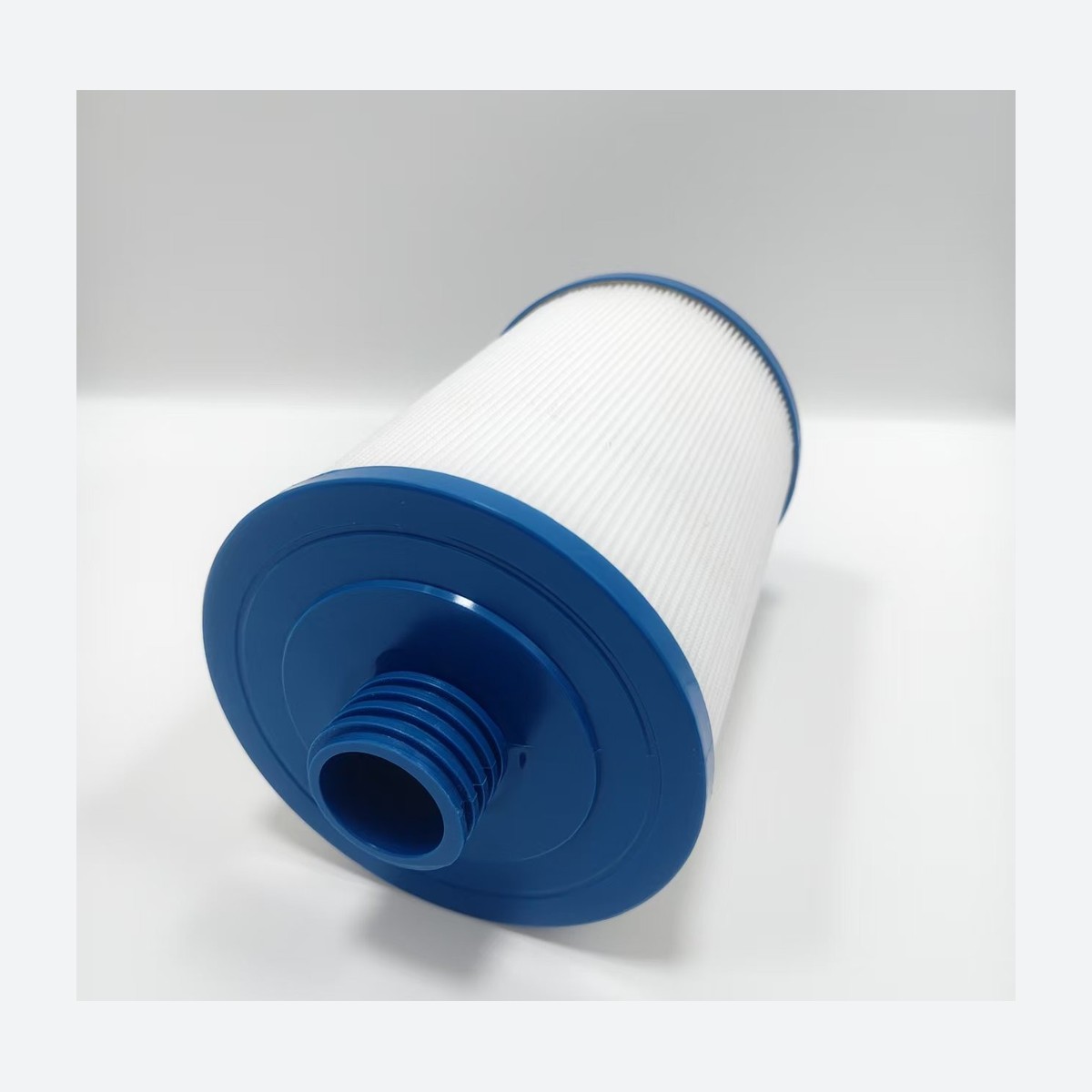

Swimming Pool & SPA Filter Cartridges
Model HJ-POOL
Pleated polyester cartridges for large pools, infant pools, SPA and aquaculture — OD 65 to 114 mm, 5" to 40", 1 to 50 µm, up to 4.0 bar.
- Model No. HJ-POOL
- Series Pool cartridge series
- Type Pleated swimming-pool / SPA cartridge
- Outside diameter 65 / 68 / 110 / 114 mm
Our pleated pool cartridges are designed for large swimming pools, infant pools, SPA and aquaculture circulation. Polyester media or PP is pleated and the end caps are moulded directly onto the pack, so the seal cannot bypass.
Construction
Polyester fibre media, nylon centre core, polyurethane end caps and a moulded O-ring. Outside diameters of 65, 68, 110 and 114 mm are standard, with lengths from 5″ to 40″ and other sizes to order. The pleated design gives a much larger surface area than a comparable spun cartridge, which lowers pressure drop and extends service life.
Where it is used
Commercial and residential pools, SPA and bathing facilities, acrylic infant pools, aquaculture, RO pre-filtration, cooling towers and industrial water loops. Filtration ratings of 1, 5, 10, 20 and 50 µm are available; working pressure is up to 4.0 bar at 80 °C.
Selection notes
Send the outside diameter, overall length, end-cap style and the required micron rating. If you are matching an existing cartridge, a photo of the cartridge next to a ruler is the fastest way to confirm the geometry.
Features
- Pleated polyester media with moulded polyurethane end caps — no bypass at the seal
- OD 65 / 68 / 110 / 114 mm and lengths from 5" to 40"
- Filtration ratings of 1, 5, 10, 20 and 50 µm
- Seals in silicone, NBR, EPDM or fluororubber
- Maximum working pressure 4.0 bar at 80 °C
Typical applications
Large swimming pools, infant and acrylic pools, SPA, aquaculture, RO pre-filtration, cooling towers, industrial water loops
Specifications
| Model No. | HJ-POOL |
|---|---|
| Series | Pool cartridge series |
| Type | Pleated swimming-pool / SPA cartridge |
| Outside diameter | 65 / 68 / 110 / 114 mm |
| Inside diameter | 28 mm |
| Lengths | 5" / 10" / 20" / 30" / 40" (other sizes on request) |
| Filter media | Polyester fibre |
| Center core | Nylon |
| End caps | Polyurethane |
| Filtration rating | 1 / 5 / 10 / 20 / 50 µm |
| Maximum working pressure | 4.0 bar |
| Maximum temperature | 80 °C |
| Seals | Silicone · NBR · EPDM · fluororubber |
| Connection | Threaded |
Ordering & documentation
Quotations are issued against your operating conditions. Please confirm rated flow (L/min), working pressure (bar/MPa), filtration rating (µm), medium and temperature, plus the housing or reference part number you are replacing. Drawings, material certificates and inspection records are available on request for OEM orders.
