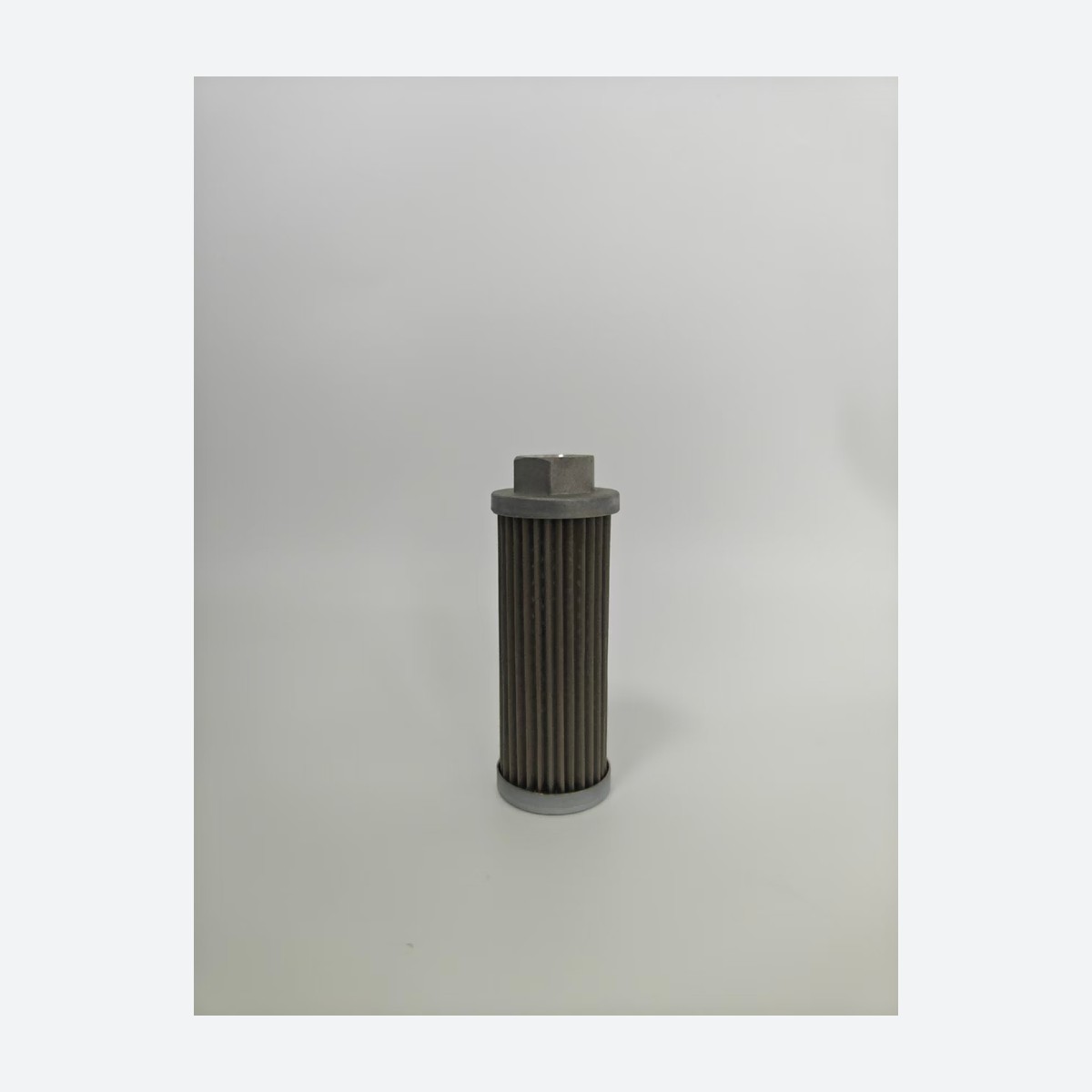

WU-40 Suction Filter Element
Model WU-40
Replacement suction strainer WU-40 for WU housings — 80–180 µm coarse protection at the pump inlet.
- Model No. WU-40
- Series WU
- Type Suction strainer element
- Flow range (series) 25–1000 L/min
Model WU-40 is a replacement suction strainer element in the WU range, used at the pump inlet of hydraulic power units.
Construction
Glass fibre, wood-pulp paper or stainless steel mesh is formed on a metal centre tube with metal end caps and a fluororubber or nitrile seal. The coarse 80–180 µm rating protects the pump without creating the pressure drop that would cause cavitation.
Where it is used
Inlet-side strainers on hydraulic power packs, machine tools, mining equipment and lubrication circuits. Because the element sits below oil level, the housing design allows it to be withdrawn without draining the tank.
Selection notes
Quote the model, the pump inlet flow and the mounting thread or flange. Elements are normally supplied in the standard coarse rating; finer ratings are available on request where the pump allows it.
Other nominal sizes in this range: WU-16, WU-25, WU-63, WU-100, WU-160, WU-225, WU-250, WU-400.
Features
- Coarse protection at the pump inlet — 80 to 180 µm
- Self-sealing valve lets the element be changed without draining the tank
- Bypass valve protects the pump if the element blocks
- Glass fibre, wood-pulp paper or metal mesh on a metal centre tube
- Fluororubber or nitrile seals for mineral oil, emulsion and water-glycol
Typical applications
Hydraulic power units, machine tools, press lines, metallurgy lubrication circuits, mining equipment
Specifications
| Model No. | WU-40 |
|---|---|
| Series | WU |
| Type | Suction strainer element |
| Flow range (series) | 25–1000 L/min |
| Working pressure | 0.6 MPa |
| Filtration rating | 80–180 µm (coarse pump protection) |
| Filter media | Glass fibre (domestic / imported) · wood pulp paper · metal mesh |
| Center tube | Metal |
| Seals | Fluororubber (FKM) · nitrile (NBR) |
| Working medium | Hydraulic oil · phosphate-ester fluid · emulsion · water-glycol |
| Working temperature | −30 °C to +110 °C |
Ordering & documentation
Quotations are issued against your operating conditions. Please confirm rated flow (L/min), working pressure (bar/MPa), filtration rating (µm), medium and temperature, plus the housing or reference part number you are replacing. Drawings, material certificates and inspection records are available on request for OEM orders.
